IMT Temperature Sensors

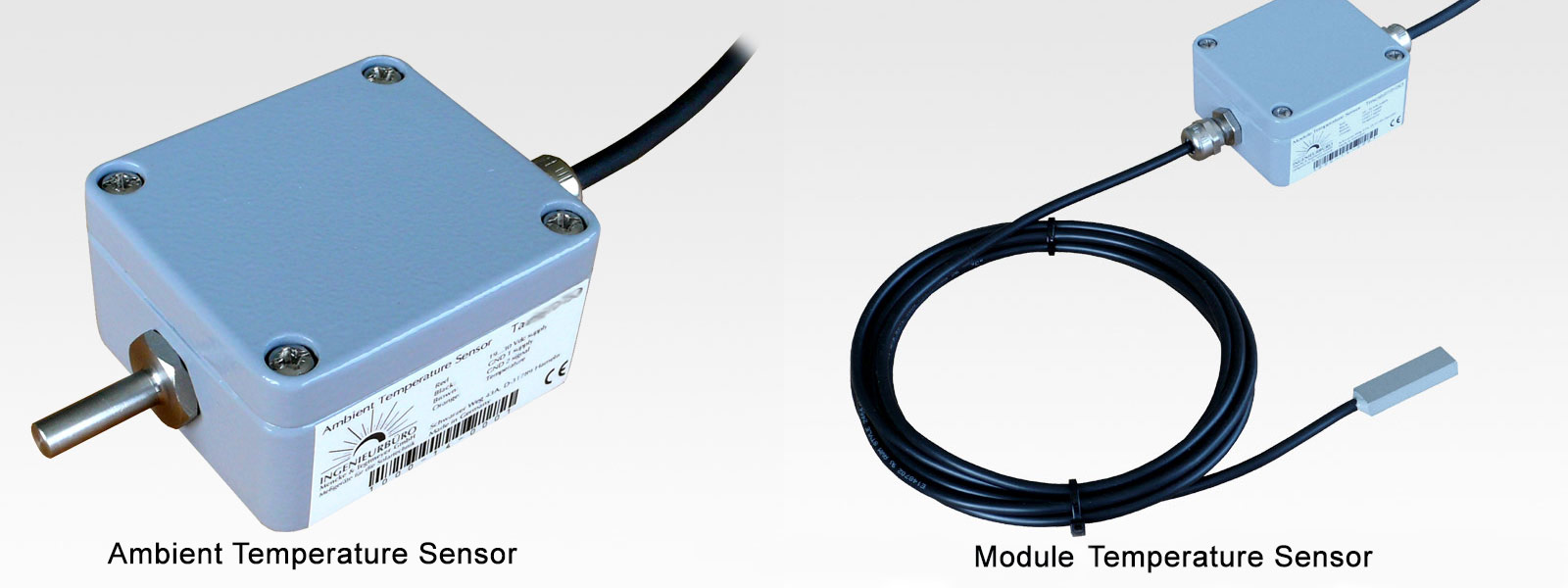

IMT Solar has launched a complete line of temperature sensors for use in long term performance monitoring of solar PV modules and systems. There is both a back of module temperature sensor and an ambient temperature sensor.
Both models are now available in various signal output types to match your monitoring and data logging needs. Available today are: 0-10VDC, 4-20 mA, and RS485 Modbus outputs.
Thông tin chi tiết

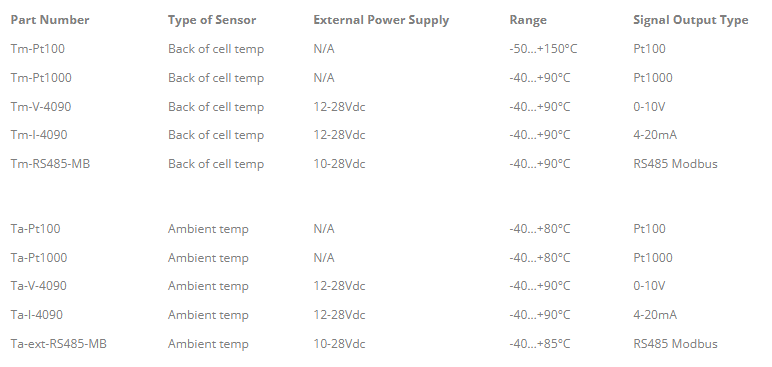

Available Sensor Types :
.png)
IMT Silicon Irradiance Sensor
Silicon Irradiance Sensor are built using a powder-coated aluminum case sealed to IP 67. The solar cell is embedded in ethylene-vinyl acetate (EVA) between glass and Tedlar™. The laminated cell is integrated into a powder-coated aluminum case. This configuration of the sensor is comparable to that of a standard PV module making the sensor an ideal choice for irradiance monitoring of commercial PV installations.
The electrical connection for the sensor is realized by an integrated cable or an IP67 rated connector. A cable length of 3 meters is standard for most of our sensors, however other cable lengths can be provided.
